Chicago and Alton Railroad Bridge

Chicago and Alton Railroad Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: 2008, June 2010, June 2011, and January 30, 2016

View Photos
and Videos
View Maps
and Links

Location
Chicago: Cook County, Illinois: United States
Structure Type
Metal 5 Panel Rivet-Connected Warren (No Verticals) Through Truss, Movable: Single Leaf Bascule (Page) and Approach Spans: Metal Girder, Fixed
Construction Date and Builder / Engineer
1906 By Builder/Contractor: American Bridge Company of New York, New York and Engineer/Design: William M. Hughes of Chicago, Illinois
Rehabilitation Date
Not Available or Not Applicable
Main Span Length
150.0 Feet (45.7 Meters)
Structure Length
214.0 Feet (65.2 Meters)
Roadway Width
34.3 Feet (10.45 Meters)
Spans
1 Main Span(s) and 1 Approach Span(s)
Inventory Number
Not Applicable

Historic Significance Rating (HSR)
View Information About HSR Ratings

Bridge Documentation

View Historic American Engineering Record (HAER) Documentation For This Bridge

HAER Data Pages, PDF

View The Original Patent For The Page Bascule Bridge

View A Detailed 1907 Article About This Bridge

View A Guide To The Canal Produced By Chicago and Alton Railroad

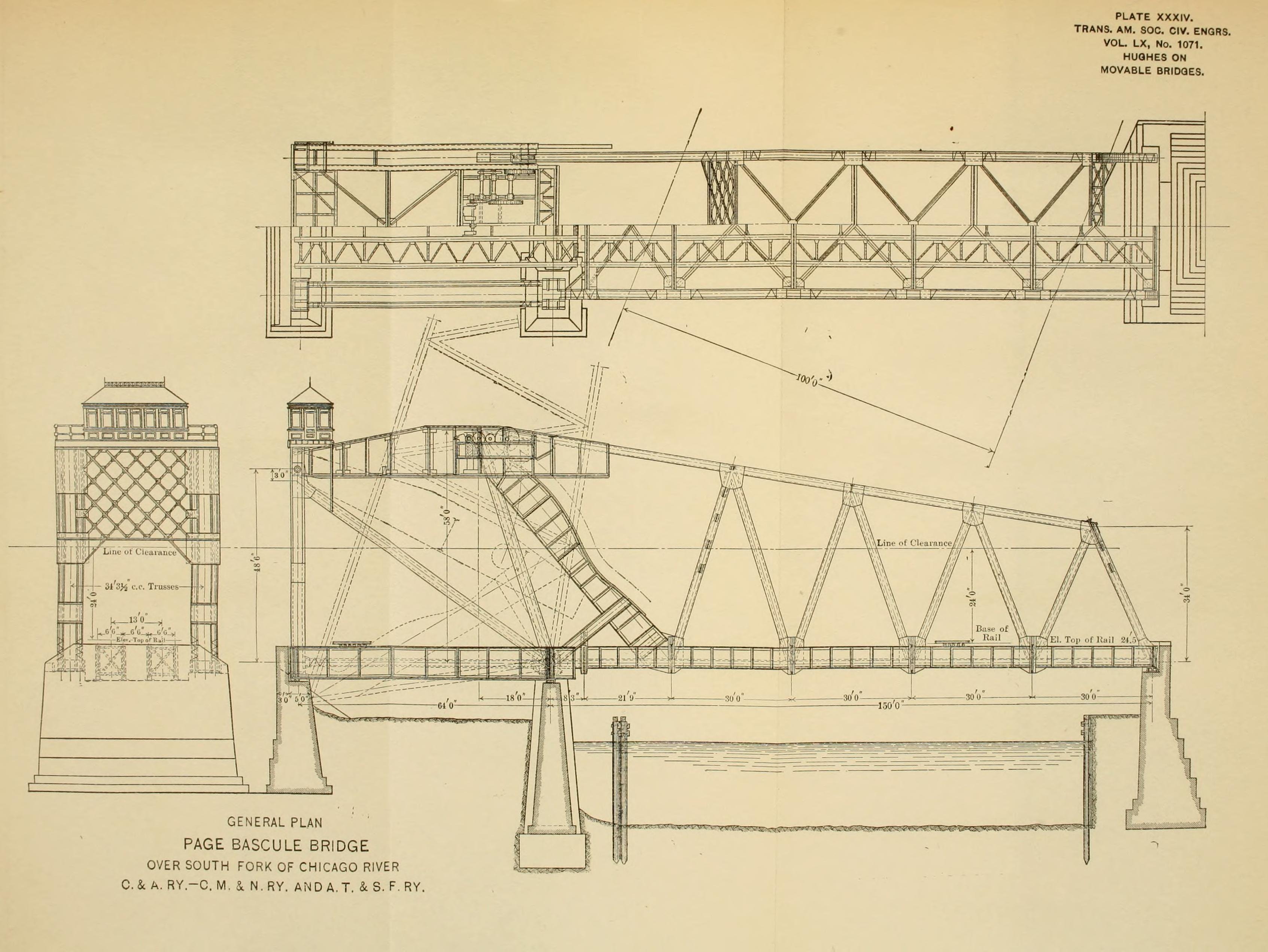

Chicago and Alton Railroad Page Bascule Bridge Drawing

Chicago and Alton Railroad Page Bascule Bridge

This bridge is an extremely rare example of a Page bascule bridge. The Page bascule's unusual appearance was a patented design in which the counterweight was built into the approach system. It is one of the only remaining examples left of this noteworthy and unusual movable bridge form. This bridge was also designed such that the machinery and other equipment actually acts as part of the bridge's counterweight. In a city that has more movable bridges than any other city in the world, this bridge stands out as one of the most unusual and unique movable bridges in Chicago.

Chicago and Alton Railroad Page Bascule Bridge

The bridge was reportedly the first Page bascule railroad bridge ever built. It also was reported to be the largest bascule bridge in the world when built, a record that several of Chicago's bridges have held for (often brief) periods of time following their completion. The distinctively shaped curvy racks of this bridge (upon which the pinions run) were noted as the largest individual sections of structural steel ever fabricated to that date in Chicago. Although the Chicago and Alton Railway was the "lead railroad" in supervising the construction of the bridge, it was a joint project including the Illinois Central and Atchison, Topeka, and Santa Fe Railroads as well. Wisconsin Central also had trackage rights upon completion of the bridge under Illinois Central. Work begun on  the bridge in March of 1905. The bridge was nearly completed by the end of the year. American Bridge Company was the superstructure contractor, with the steel coming from the Lassig plant in Chicago. G. P. Nichols and Brother of Chicago was the electrical contractor. Thomas Phee Company of Chicago was the substructure contractor. Kelly-Atkinson Construction Company of Chicago erected the superstructure.

Above: Photo showing previous bridge at this location, ca. 1902.

Above: Photo showing previous bridge at this location.

The bridge was constructed as a replacement for a former bridge which was kept open during construction. The former bridge was a bobtail swing bridge dating to the 1880s. The construction plan included 24 hours to make the switch from the previous bridge to the new bridge, with an expectation that it would be done in only 10 hours. However, the previous bridge's pinned connections were more rusted that thought and they had difficulty getting them apart during demolition. As a result, it took nearly 25 hours before railroad traffic was again flowing.

Chicago and Alton Railroad Page Bascule Bridge Drawing

Be sure to view the 1907 article (link provided at top of this narrative) which  includes several original engineering drawings of the bridge, several photos, and a detailed discussion of the bridge. This article provided the majority of information seen in this HistoricBridges.org narrative.

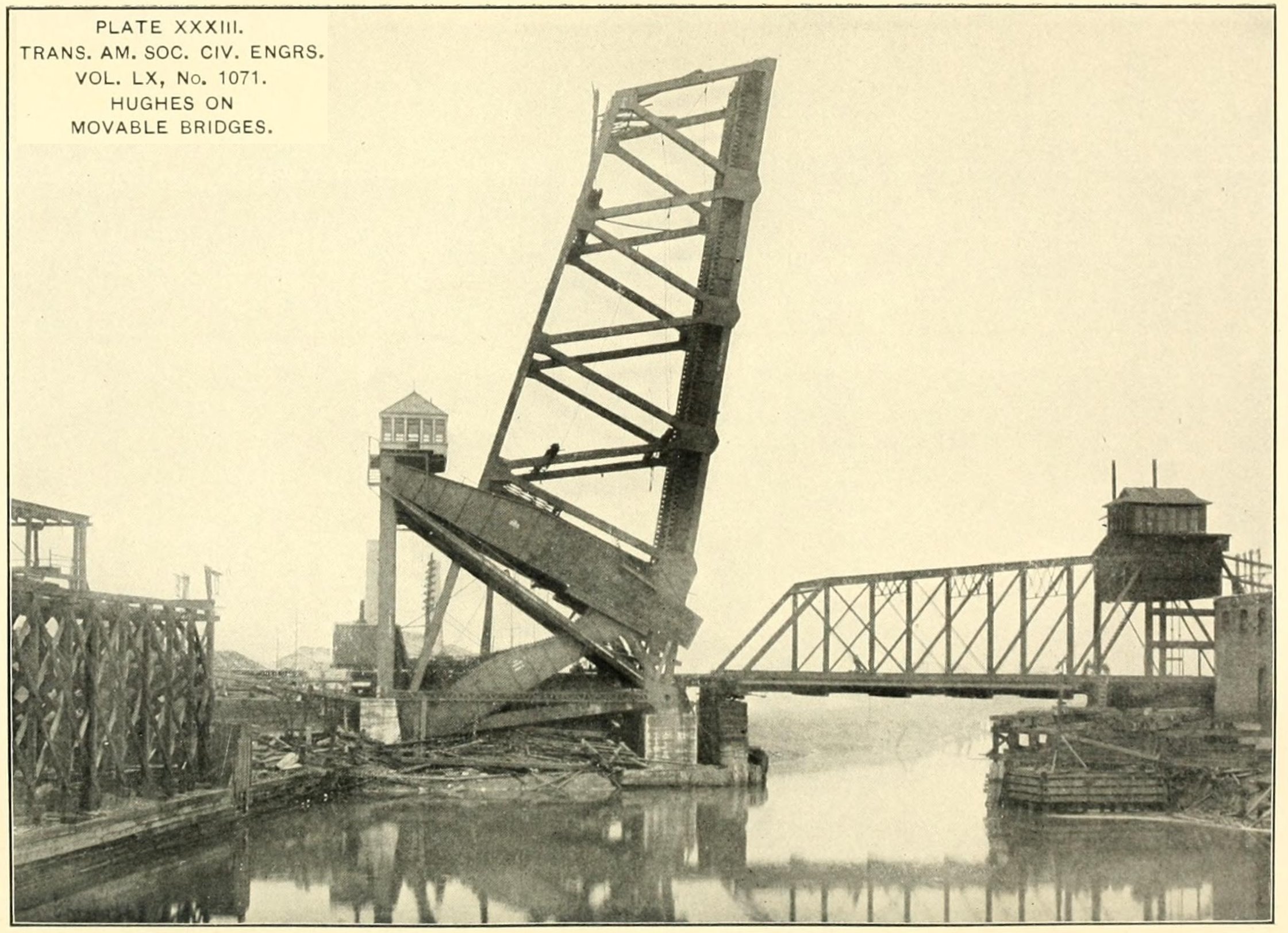

Sadly, this bridge no longer lifts for boats today. Worse, because of the unusual design of this bridge, it can be difficult to imagine how this bridge's parts work to move the bridge. Fortunately, there is a historical photo, shown to the right, which shows the bridge in its raised position which helps to show the manner in which the bridge lifts. Also note that the drawing shown at the top of this narrative has a shadow underlay that shows the bridge in the raised position.

The bridge is hard to photograph, but if you ride the CTA Orange Line and get off at the Ashland Station, views of this bridge can be had from the station platform.

Chicago and Alton Railroad Page Bascule Bridge Construction

The following text below and picture above are from The Bridgemen's Magazine Vol. 7, 1907, Digitized By Google.

The accompanying pictures are of the Page Bascule bridge, erected at Bridgeport, Chicago, over the
south fork of the Chicago River, better known as "Babbly Creek," to replace the Bridgeport draw. The
contract for the superstructure was let to the American Bridge Company and the erection was done by
Kelly-Atkinson Construction Company. T. C. Fisher was in charge of the work, which was done by the
members of Local No. 1. It is the largest bascule bridge In the world, 150 feet in length and a total
weight of 1,130 tons, divided as follows; 550-ton counterweight, 250 tons of which is cast iron and
the remainder punchings, scrap iron, etc., mixed with concrete; 47 tons machinery and 530 tons
structural steel. The rack guides are the largest pieces of structural steel ever turned out in
Chicago, each weighing 70 tons and measuring over 75 feet in length.

The work was done in very good time, considering the delay caused by traffic, for four lines of
railway cross the span, running over 50 passenger trains during the working day of eight hours.

Wishing you success, I am,

Very truly yours,

FRED F. BUCK.

Monessen, Pa

William Mackenzie HughesEmile R. Shnable

Owner Plaque

BUILT 1906

BY THE CHICAGO & ALTON RY. CO.

G H KIMBALL  CHIEF ENGINEER

W H HUGHES  CONSULTING ENG'R

PAGE & SHNABLE  PATENTEES

Builder Plaque

AMERICAN BRIDGE CO
OF NEW YORK

CONTRACTORS FOR SUPERSTRUCTURE

THOMAS PHEE & CO

CONTRACTORS FOR SUBSTRUCTURE

Thomas Phee Company Chicago Advertisement  Chicago and Alton Railroad Advertisement

Information and Findings From Chicago Landmarks Designation

General Information

Address: East of Ashland Ave., North of Archer Ave. (South Fork of the South Branch of the Chicago River)
Year Built: 1906
Architect: Page & Shnable
Date Designated a Chicago Landmark: December 12, 2007

The Chicago & Alton Railway Bridge was constructed for the joint use of three railroads: the Chicago & Alton, the Illinois Central, and the Atchison, Topeka & Santa Fe railways. Engineer, John W. Page of the firm, Page & Shnable, developed and patented the design of the bridge, which is known as a Page trunnion bascule. The Chicago & Alton Railway Bridge is significant for being the first of its kind erected for railroad use and it may be the only one left in existence. The superstructure is made from steel and operated by using two 124-horsepower motors mounted on a frame between two counterweights. These counterweights pivot and roll downward, tilting the bridge and giving it the appearance of the span rising effortlessly. The bridge's counterweights are contained within steel plates that visually blend with the structure giving it a graceful appearance. The bridge is visible from the Stevenson Expressway and Metra and Orange Line trains. Today, it is still in use, but its mechanism has been disabled, since it no longer is raised for navigational purposes.

This Bridge Is A Designated Chicago Landmark

Visit The Chicago Landmarks Website
