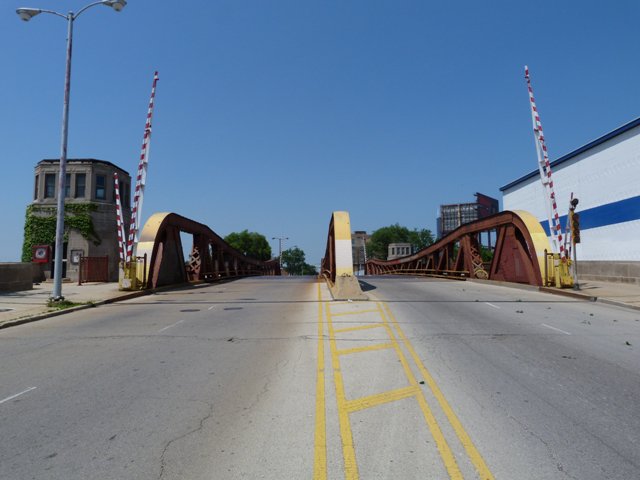

Halsted Street South Branch Bridge




Halsted Street South Branch Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: August 12, 2006
View Photos
and Videos
View Maps
and Links

Key Facts

Facility Carried / Feature Intersected
Halsted Street Over South Branch Chicago River
Location
Chicago: Cook County, Illinois
Structure Type
Metal Rivet-Connected Pratt Pony Truss, Movable: Double Leaf Bascule (Fixed Trunnion) and Approach Spans: Metal Stringer (Multi-Beam), Fixed
Construction Date and Builder / Engineer
1934 By Builder/Contractor: Mount Vernon Bridge Company of Mount Vernon, Ohio and Engineer/Design: City of Chicago

Technical Facts

Rehabilitation Date
1988
Main Span Length
224 Feet (68.3 Meters)
Structure Length
316 Feet (96.3 Meters)
Roadway Width
90 Feet (27.4 Meters)
Spans
1 Main Span(s) and 4 Approach Span(s)
NBI Number
16602426838

Historic Significance Rating (HSR)

Bridge Documentation

View Archived National Bridge Inventory Report - Has Additional Details and Evaluation

View A Historical Article About The Previous Vertical Lift At This Location (Alternate High Quality Scan From Internet Archive)

About This Bridge

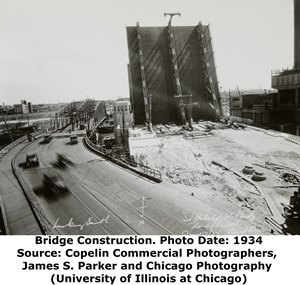

Halsted Street Sanitary and Ship Canal BridgeHalsted Street Sanitary and Ship Canal Bridge ConstructionThis bridge is one of only three pony truss bascule bridges in Chicago which is composed of three truss lines instead of  two, allowing the bridge to have a much wider roadway.

 The substructure for this bridge was built by the Fitzsimmons and Connell Company of Chicago, who appears to have built most of the substructures for Chicago's bascule bridges. For most Chicago bridges, the superstructure was built by local contractors, or at least small contractors who are not well-known nationally. This bridge is an exception, with its superstructure being built by the Mount Vernon Bridge Company of Mount Vernon, Ohio. The Mount Vernon Bridge Company was one of the bridge companies that existed back during the height of the pin connected truss era, and built bridges like Michigan's Martin Road Bridge. The company did not die out or get absorbed by the American Bridge Company during the turn of the 20th century, and instead continued on as a bridge builder and fabricator allowing it to make an appearance here in Chicago during the 1930s.

This bridge was constructed with the aid of a temporary bobtail swing bridge built to carry traffic while the bascule bridge was constructed following demolition of the previous lift span. This temporary bobtail swing bridge was later reused as a temporary bridge for Ashland Avenue.

Previous Bridges At This Location

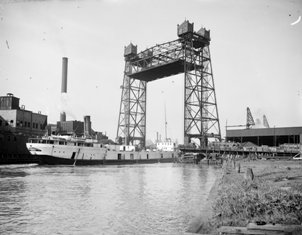

Former Halsted Street Lift BridgeThe first documented bridge at this location was built in 1861 and was a wooden bridge built by Fox and Howard. In 1872, this bridge was rebuilt by the King Iron Bridge Company of Cleveland, Ohio as an iron bridge. This bridge was destroyed by a collision with the Steamer Tioga on June 21, 1892. The next bridge at this location (which preceded the existing bridge) was one of the first modern vertical lift bridges constructed in the United States. As such, it enjoyed a great deal of attention from engineers and appeared in many different engineering texts and periodicals.  The bridge was designed by J. A. L. Waddell, who became a leading designer and advocate for vertical lift bridges. The portal bracing for this bridge originally included three plaques, a large plaque in the center and two smaller circular plaques at the knee braces. The knee braces also had ornate scrollwork. The bridge superstructure was constructed by the Pittsburgh Bridge Company of Pittsburgh, Pennsylvania.

Former Halsted Street Lift Bridge

Former Halsted Street Lift BridgeFormer Halsted Street Lift Bridge

Above: Historical Photos Showing Previous Vertical Lift Bridge. Source: Library of Congress
