Western Avenue Bridge




Western Avenue Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: August 12, 2006, June 28, 2011, and September 7, 2011
View Photos
and Videos
View Maps
and Links

Key Facts

Facility Carried / Feature Intersected
Western Avenue Over Chicago Sanitary and Ship Canal
Location
Chicago: Cook County, Illinois
Structure Type
Metal Through Girder, Movable: Vertical Lift (Tower Drive) and Approach Spans: Metal Through Girder, Fixed
Construction Date and Builder / Engineer
1940 By Builder/Contractor: Strobel Steel Construction Company of Chicago, Illinois and Engineer/Design: City of Chicago

Technical Facts

Rehabilitation Date
1942
Main Span Length
109 Feet (33.2 Meters)
Structure Length
295 Feet (89.9 Meters)
Roadway Width
107.3 Feet (32.7 Meters)
Spans
1 Main Span(s) and 2 Approach Span(s)
NBI Number
16605623164

Historic Significance Rating (HSR)

Bridge Documentation

View Archived National Bridge Inventory Report - Has Additional Details and Evaluation

View Historic American Engineering Record (HAER) Documentation For This Bridge

HAER Data Pages, PDF

Western Avenue Bridge

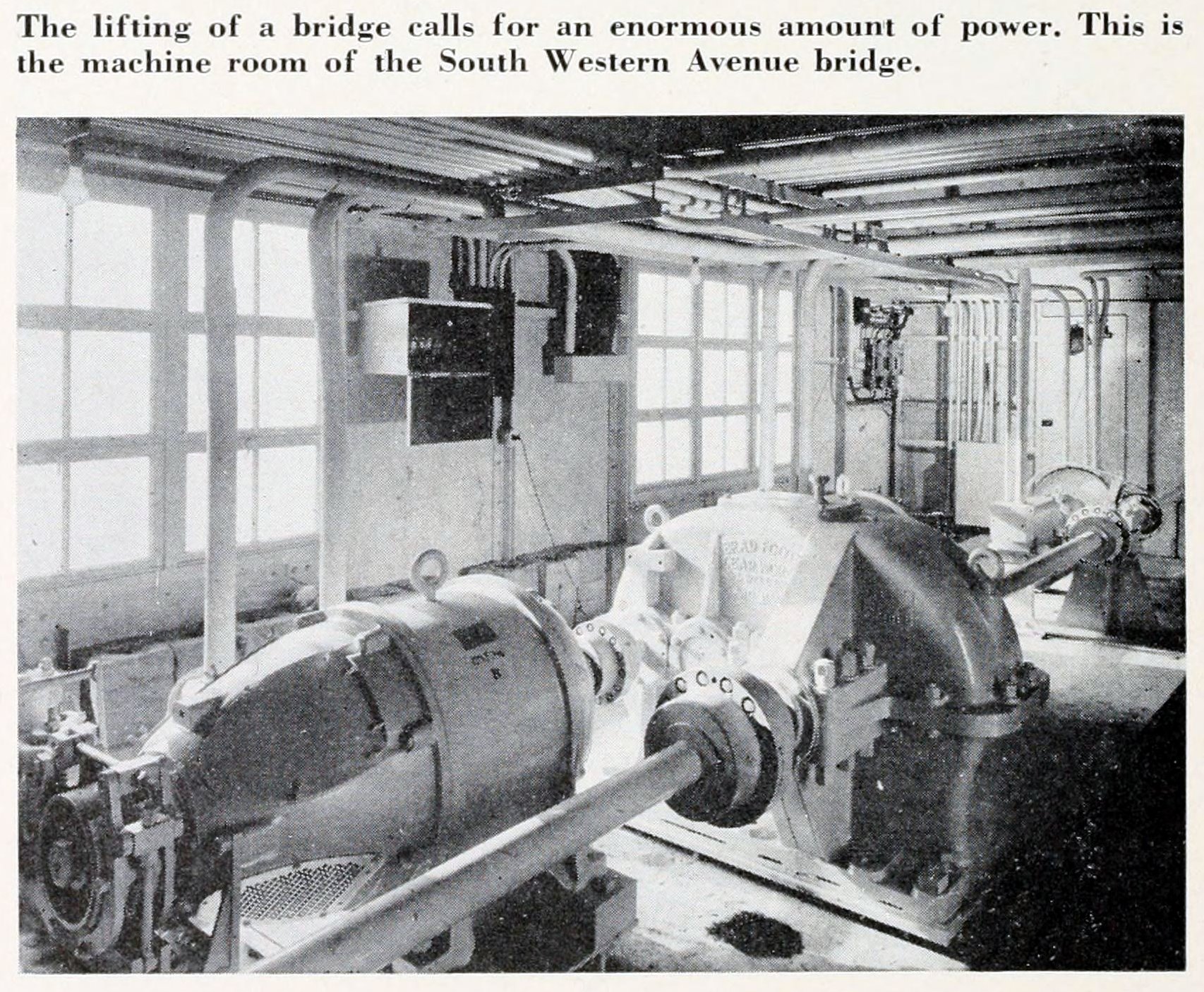

Western Avenue Bridge Machine RoomStrobel Steel Construction Company ChicagoFew who cross this bridge today and do not know the history of this bridge probably are completely unaware that what looks like a typical, albeit very wide, fixed riveted through plate girder bridge was once an impressive vertical lift bridge.  As unbelievable as it may seem, this bridge once had giant trussed towers and the associated mechanical equipment that enabled the central plate girder span to be lifted up, making it one of the widest vertical lift bridges known. Although this bridge was originally constructed as a fixed plate girder bridge, in 1942, the bridge was altered by the addition of towers and machinery that converted the bridge into a vertical lift bridge, to allow the Navy to move boats as part of the ongoing World War II. Unfortunately, all of those elaborate furnishings have once again been removed, leaving behind a very wide fixed plate girder that may in fact be representative of how the bridge appeared when originally built.

As a movable bridge, this bridge has lost all integrity that conveys its function. It is no longer significant as a movable bridge. However if considered for what it is today, a fixed through plate girder, the bridge is noteworthy for its art deco design including concrete pillars and a large and handsome bronze plaque design. Even the original ornate railings remain on the bridge, ironic because many of the movable bridges which retain structural integrity have lost their original railings.

Thanks to Tom Winkle for providing boat transportation to assist in the photo-documentation of this historic bridge.

Description of Bridge Conversion From Chicago's Report To The People, 1933-1946

The advent of war stopped new bridge construction and prevented completion of the State Street and Canal Street bridge projects. Material and manpower shortages made maintenance of existing structures a difficult task. But engineers and men of the Bureau of Bridges and Viaducts carried on with great resourcefulness, maintaining these essential links in the city's system of war production traffic arteries. In addition, they rehabilitated six bridges over the drainage canal which had been inoperative for about fifteen years to permit passage of Navy vessels en route to the Gulf of Mexico.

A notable achievement in this connection was the conversion of a 10-lane fixed bridge on south Western Avenue into a lift bridge. As a fixed bridge, its 21-foot vertical clearance over the sanitary and ship canal was inadequate to permit passage of newly-built war vessels from Great Lakes shipyards to the Gulf of Mexico. Some vessels had been taken through by omitting their superstructures and lowering the canal four feet, but this method had serious drawbacks. In July, 1942, the city entered into a contract with the Navy department for the alteration to be done by the city. The first shipment of steel for the towers arrived at the site on January 22nd. During the next ten weeks - in one of Chicago's coldest winters - the basic job of con- version was done. Trial tests were made on April 4th and on the following day naval vessels passed through the open draw of the reconverted bridge! One of the great aspects of this achievement is the fact that traffic on the ten lanes provided by the 140-foot deck of the crossing - including two street car tracks, and two sidewalks - was not seriously interrupted during the remodeling.

Western Avenue Bridge Raised

Above: A photo showing the bridge with its lift towers in place and the lift span in raised position.

Western Avenue Bridge Lift Span DedicationWestern Avenue Bridge Lift Span Dedication

Above: Photos showing the dedication ceremony following the conversion of the fixed Western Avenue Bridge into a lift bridge.

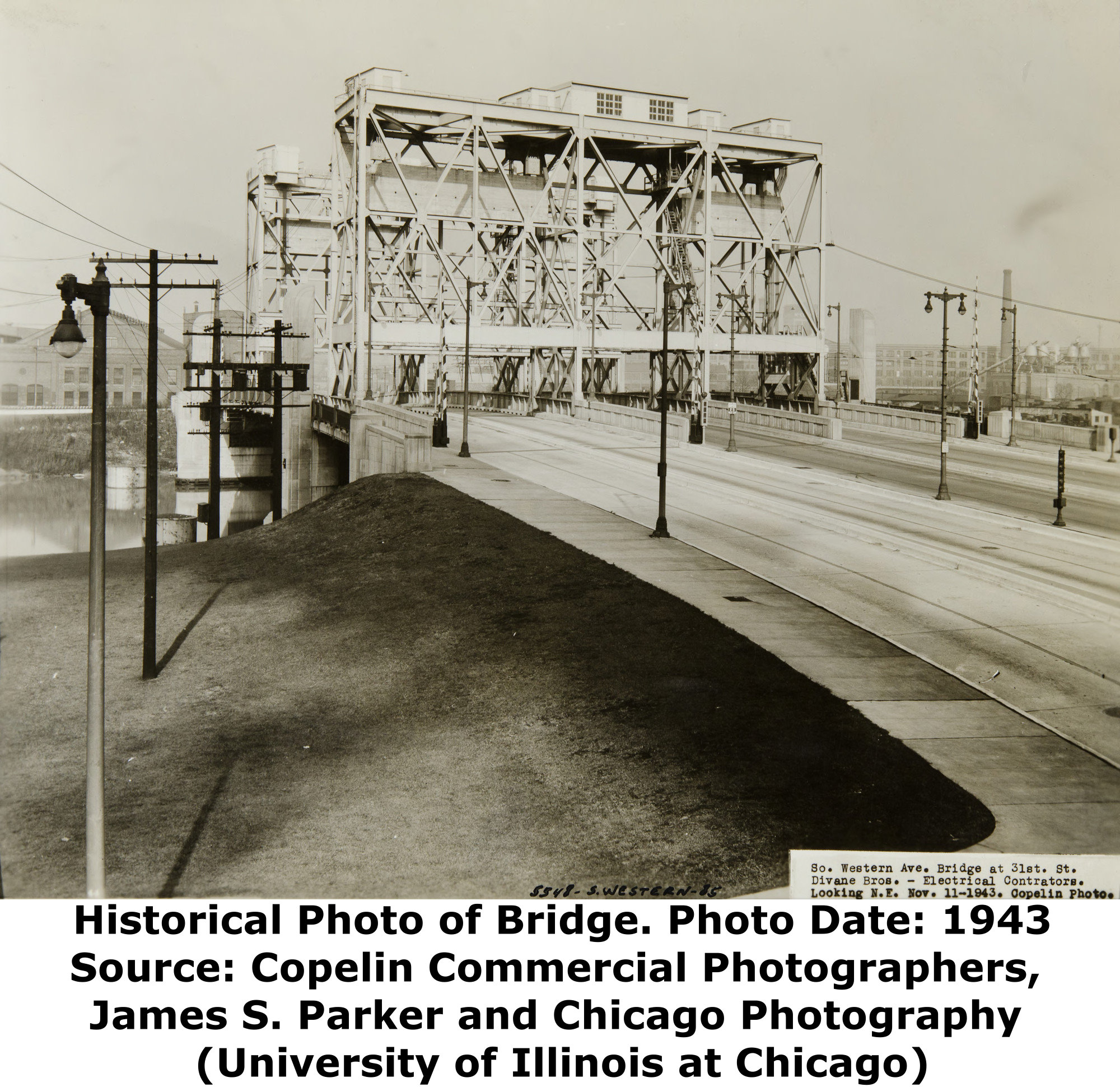

Western Avenue BridgeWestern Avenue Bridge

Above: Photos from 1943 and 1972, respectively, showing the bridge with the lift towers in place.



Main Plaque

FEDERAL WORKS AGENCY
PUBLIC WORKS ADMINISTRATION

JOHN M. CARMODY
FEDERAL WORKS ADMINISTRATOR

FRANKLIN D. ROOSEVELT
PRESIDENT OF THE UNITED STATES

S. WESTERN AVENUE IMPROVEMENT
1940

BUILT BY THE
CITY OF CHICAGO
EDWARD J. KELLY, MAYOR

BOARD OF LOCAL IMPROVEMENTS

MICHAEL F. MULCAHY, PRESIDENT

WILLIAM W. LINK, VICE PRESIDENT

MEMBERS

CHARLES H. WEBER WILLIAM J. CONNORS

PAUL H. MUELLER,  SECRETRY

DEPARTMENT OF PUBLIC WORKS

OSCAR E. HEWITT
COMMISSIONER

DESIGN AND SUPERVISION
ARTHUR ENGH
CHIEF ENGINEER

R. O. BENSON, ASST. ENGR.

S. DEL CAMPO, ARCHITECT
J. R. BUTLER, DESIGN ENGR.

A. O. STRAUDER, CONSTR. ENGR.

M. J. BURKE, RESIDENT ENGINEER

CONTRACTORS

M. J. MCDERMOTT & CO.
BRIDGE AND VIADUCT SUBTRUCTURES

STROBEL CONSTRUCTION CO.
BRIDGE AND VIADUCT SUPERSSTRUCTURES
JOHN A. MCGARRY CO.
STREET WORK

STREET LIGHTING SERVICE CO.
STREET LIGHTING

SEC. S. WESTERN AVE - S. A. 055 - 1111 - C. S.

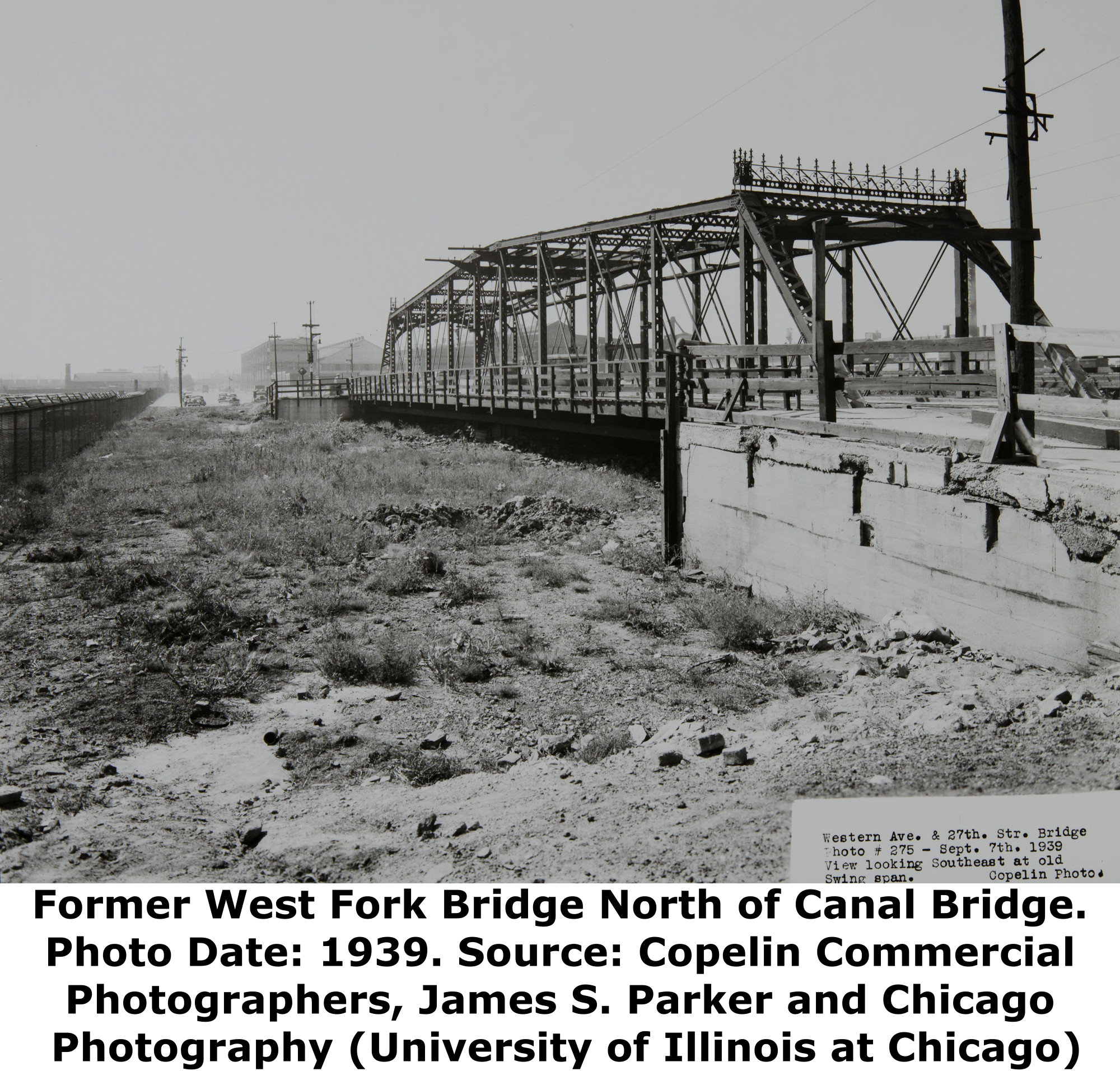

Former Western Avenue West Fork Swing BridgeFormer Western Avenue West Fork Swing Bridge

Above: While this is a completed different bridge, it is interesting to note that as late as 1939, there was an impressive, yet narrow through truss that crossed a body of water (The West Fork of the South Branch Chicago River) that was filled in around 1939, after which the bridge was likely demolished. The two photos above show the bridge before and after the fill project. The Annual Report of the Department of Public Works provides the following information about former Western Avenue bridges: Among canal bridges: The first documented bridge was built in 1870 of wood by C. Fitz Simons and the bridge was a fixed bridge. This bridge was replaced by an iron fixed bridge in 1882. This bridge was built by the Massillon Bridge Company of Massillon, Ohio. It had a length of 118 feet and a width of 18 feet. The Public Works Report also listed a history of crossings for South Western Avenue, which is presumed to refer to the West Fork of the South Branch Chicago River Bridges. The first listed bridge was a hand-turned swing bridge that was a wood/iron combination bridge built by F. E. Canda in 1869. It was replaced in 1906 when the old 18th Street Bridge was moved and reused at Western Avenue. That bridge was built in 1888 by the King Bridge Company of Cleveland, Ohio and was a hand-turned iron and steel swing bridge.
