Bardwells Ferry Bridge




Bardwells Ferry Bridge

Primary Photographer(s): Nathan Holth and Rick McOmber

Bridge Documented: July 13, 2008
View Photos
and Videos
View Maps
and Links

Key Facts

Facility Carried / Feature Intersected
Bardwells Ferry Road Over Deerfield River
Location
Rural: Franklin County, Massachusetts
Structure Type
Metal 13 Panel Pin-Connected Lenticular Through Truss, Fixed and Approach Spans: Metal Stringer (Multi-Beam), Fixed

Technical Facts

Rehabilitation Date
1995
Main Span Length
198 Feet (60.3 Meters)
Structure Length
230 Feet (70.1 Meters)
Roadway Width
14 Feet (4.3 Meters)
Spans
1 Main Span(s) and 1 Approach Span(s)
NBI Number
C200170H6MUNNBI

Historic Significance Rating (HSR)

Bridge Documentation

View Archived National Bridge Inventory Report - Has Additional Details and Evaluation

View Historic American Engineering Record (HAER) Documentation For This Bridge

HAER Drawings, PDF - HAER Data Pages, PDF

View The Original 1882 Contract For This Historic Bridge, Courtesy Historic American Engineering Record

View The Original Lenticular Truss Bridge Patent

View Massachusetts Historical Commission (MHC) Inventory Forms For This Historic Bridge

View The National Register of Historic Places Nomination Form For This Historic Bridge

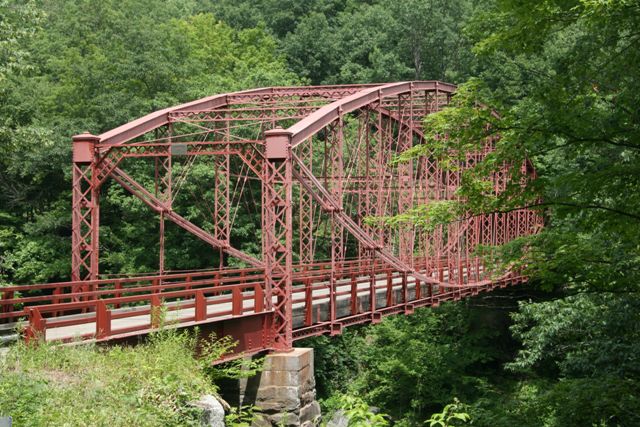

The Bardwell's Ferry Bridge is a beautiful, nationally significant example of the rare lenticular truss bridge type. The bridge has been well maintained and preserved for vehicular traffic, and most importantly, this has been done without altering the original design and thus affecting the high level of historic integrity that this bridge continues to display. For instance, modern crash-tested barriers have been added, properly mounted to the deck so as to protect the bridge's trusses from damage, but at the same time the original and tiny rod railings have been left in place behind these new guardrails. Very few rivets have been replaced with bolts. Original built-up fishtail style floorbeams remain on this bridge. Clearly, despite being maintained for vehicular traffic, this bridge enjoys a high degree of historic integrity. Massachusetts deserves to be thanked for maintaining the structural and historic integrity of this bridge, and hopefully they will continue to do so.

The bridge includes a riveted plate girder approach span. It is possible, however unproven, that there may have been a lenticular pony truss approach span here that was replaced at a later date. Riveted plate girders were not very common on highways in 1882, but were used into the 1920s and 1930s in some states.

Be sure to view the HAER documentation for this bridge as it includes an extensive historical narrative and measured drawings. Engineers will especially enjoy one of the measured drawings which explains how the lenticular truss bridge functions as a unique truss structure. The bridge operates similar to a combination of an arch and cable type of system.

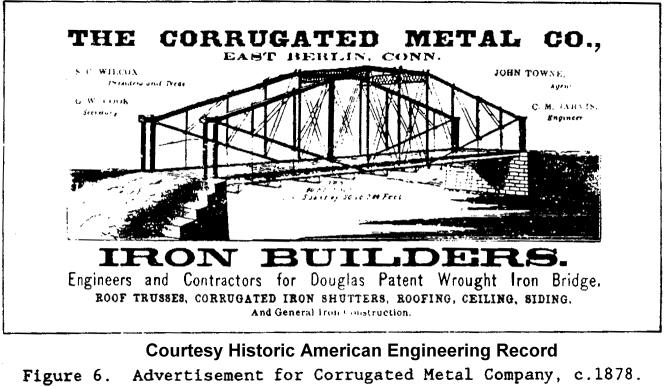

This bridge is nationally significant as a rare surviving example of a lenticular truss bridge, and even among all the lenticular truss bridges an extremely significant bridge. On a statewide basis, the bridge is further significant as the longest remaining lenticular truss span and also the oldest surviving example. Even nationally, this bridge is among the oldest and longest of the lenticular truss bridges. The bridge predates the name change that the Corrugated Metal Company made to the Berlin Iron Bridge Company in 1883 which is why the builder name is listed as Corrugated Metal Company for this 1882 bridge.
