Flushing Bridge

Flushing Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: December 26, 2009 and November 22, 2012

View Photos
and Videos
View Maps
and Links

Facility Carried / Feature Intersected
Main Street Over Flint River
Location
Flushing: Genesee County, Michigan: United States
Construction Date and Builder / Engineer
1922 By Builder/Contractor: L. Smith, H. A. and M. C. Nichols of Hastings, Michigan
Rehabilitation Date
1998
Main Span Length
66.0 Feet (20.1 Meters)
Structure Length
184.0 Feet (56.1 Meters)
Roadway Width
24 Feet (7.32 Meters)
Spans
3 Main Span(s)
Inventory Number
254240400009B01

Historic Significance Rating (HSR)
View Information About HSR Ratings

Bridge Documentation

View Archived National Bridge Inventory Report - Has Additional Details and Evaluation

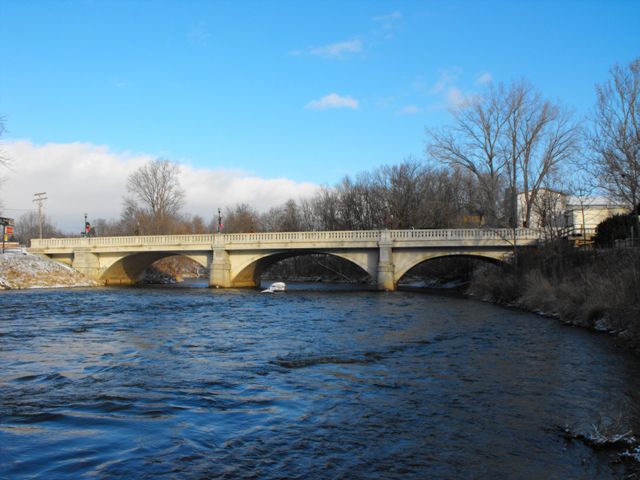

The Flushing Bridge is the only Flint River crossing in the city, right next to the downtown, and is a centerpiece for the city. The bridge is a traditionally composed earth-filled closed spandrel concrete arch bridge. The Flushing Bridge is a good example of a compromise preservation solution. Rather than demolish and replace this attractive concrete arch bridge, they chose to preserve the concrete arch superstructure and substructure while widening and altering the deck including the cantilevered sidewalk. While not the most historically sensitive preservation solution by far, it is still a million times better than demolishing and replacing the bridge. The rehabilitation of this bridge was a compromise solution that increased the capacity of the bridge and brought it back to AASHTO code standards, while also retaining the main part of the historic bridge, which is the concrete arch superstructure. The rehabilitation of the bridge included the removal of the entire deck, all railing, and the entire sidewalk cantilever. The sidewalk cantilevers were replaced with a pre-stressed concrete slab. Historic style AASHTO-approved crash-resistant concrete guardrails were put on the new sidewalk, with low-profile two-tube steel guardrail between the sidewalk and the vehicular deck. Although obviously original railings would be preferred, these historic style sidewalk guardrails are much more attractive than the traditional New Jersey barrier or some other form of modern guardrail.

Today, the bridge is easy for people to enjoy thanks to an viewing area as well as a river walk at the northeast quadrant around the bridge.


This bridge is tagged with the following special condition(s): Unorganized Photos
