Brockton Bridge

Brockton Bridge

Primary Photographer(s): Nathan Holth, Luke Gordon, and Rick McOmber

Bridge Documented: March 13, 2011 and April 11, 2015

View Photos
and Videos
View Maps
and Links

Key Facts

Facility Carried / Feature Intersected
Concession Road 2A (Concession Road 20) Over Teeswater River
Location
Brockton: Bruce County, Ontario: Canada
Construction Date and Builder / Engineer
By Builder/Contractor: Hamilton Bridge Company of Hamilton, Ontario

Technical Facts

Rehabilitation Date
Not Available or Not Applicable
Main Span Length
Not Available
Structure Length
101 Feet (31 Meters)
Roadway Width
14.8 Feet (4.51 Meters)
Spans
1 Main Span(s)
NBI Number
Not Applicable

Historic Significance Rating (HSR)

Bridge Documentation

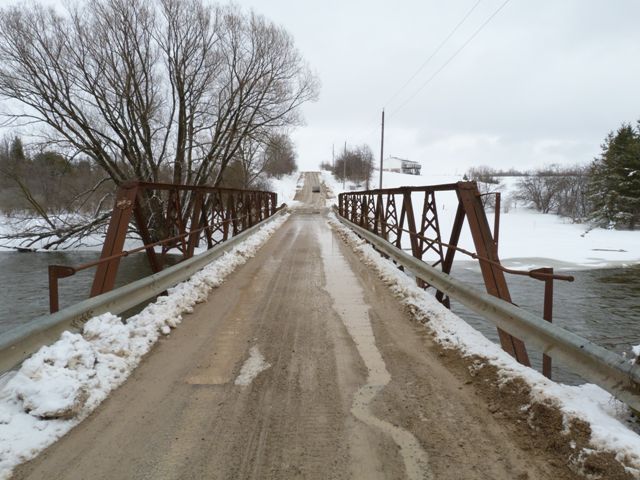

This bridge is a single span pony truss that is located downstream from two crossings that are through truss spans. Since rivers generally grow as they flow downstream, and through truss bridges are used for longer spans, it is evident that this bridge is both a relatively long example of a pony truss bridge, and appears to also perhaps cross the river at an unusually narrow location. Despite its relatively long span length, the bridge is an example of a light weight pony truss bridge, with built-up beams composed largely of angles as opposed to channels as found on more massive truss bridges.
