20 Mile Road Bridge




20 Mile Road Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: November 20, 2005 - April 16, 2014
View Photos
and Videos
View Maps
and Links

Key Facts

Facility Carried / Feature Intersected
Bridge Park Trail Over Dickinson Creek
Location
Rural: Calhoun County, Michigan
Construction Date and Builder / Engineer
1906 By Builder/Contractor: Unknown

Technical Facts

Rehabilitation Date
Not Available or Not Applicable
Main Span Length
64 Feet (19.5 Meters)
Structure Length
64 Feet (19.5 Meters)
Roadway Width
15.4 Feet (4.7 Meters)
Spans
1 Main Span(s)
NBI Number
Not Applicable

Historic Significance Rating (HSR)

Bridge Documentation

View Archived National Bridge Inventory Report - Has Additional Details and Evaluation

View Historic American Engineering Record (HAER) Documentation For This Bridge

HAER Data Pages, PDF

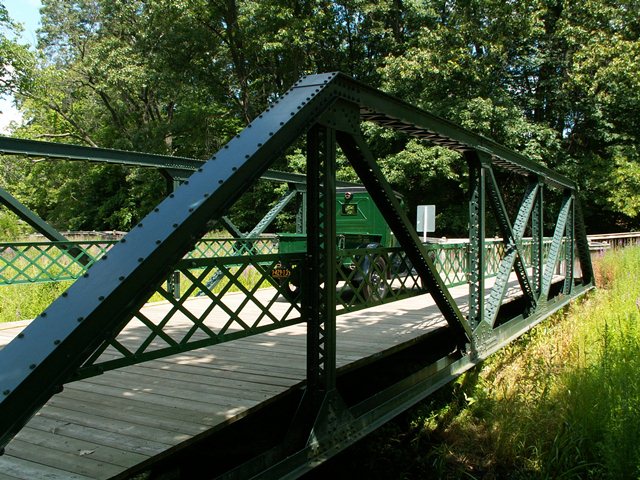

This bridge has been moved and restored, and now resides in Historic Bridge Park.

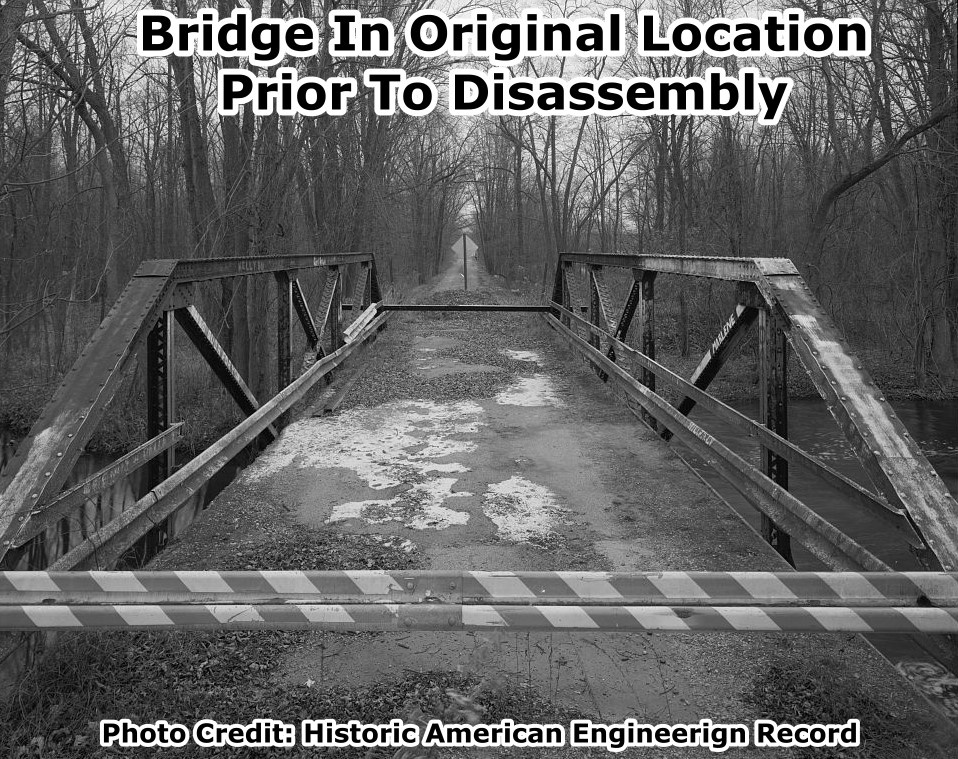

This bridge was the second bridge to be erected in the Calhoun County Bridge Park. The bridge is unusual because it is a Pratt truss configuration yet has riveted connections. Riveted connection Pratt trusses are common on Michigan's railroads, but not on Michigan's highways. According to Historic American Engineering Record (HAER), the bridge was built in 1907. HAER has a decent amount of info on this bridge as well as photos of the bridge in its original location. The bridge features a small, tight style of v-lacing on its verticals and diagonals which are similar to that of the Indian Trail Bridge, which will also eventually be at the bridge park.
