Calumet River Norfolk Southern Railroad Bridges

Calumet River Norfolk Southern Railroad Bridges

Primary Photographer(s): Nathan Holth

Bridge Documented: August 11, 2006, September 7, 2011,and September 10, 2012

View Photos
and Videos
View Maps
and Links

Facility Carried / Feature Intersected
Railroad (Various) Over Calumet River
Location
Chicago: Cook County, Illinois: United States
Construction Date and Builder / Engineer
1912 By Builder/Contractor: Kelly-Atkinson Construction Company of Chicago, Illinois and Engineer/Design: Waddell and Harrington of Kansas City, Missouri
Rehabilitation Date
Not Available or Not Applicable
Main Span Length
210.0 Feet (64 Meters)
Structure Length
210.0 Feet (64 Meters)
Roadway Width
31.25 Feet (9.53 Meters)
Spans
1 Main Span(s) and 2 Approach Span(s)
Inventory Number
Not Applicable

Historic Significance Rating (HSR)
View Information About HSR Ratings

Bridge Documentation

View Historic American Engineering Record (HAER) Documentation For This Bridge

 HAER Data Pages, HTML - HAER Data Pages, PDF

Additional HAER Documentation For The Lakeshore and Michigan Southern Bridge

Additional HAER Data Pages, HTML - Additional HAER Data Pages, PDF

View historical article about the electrical operation of these bridges.

View a short historical biography of John Lyle Harrington of Waddell and Harrington.

View a short historical biography of Charles Ellsworth Atkinson.

View historical biographies of John Alexander Low Waddell of Waddell and Harrington.

Calumet River Railroad Bridges

The bridges are currently Norfolk Southern owned. There used to be two of the Pittsburgh, Fort Wayne & Chicago Railway Bridge also but one was demolished in 1965. The Pittsburgh, Fort Wayne & Chicago Railroad bridge is the one that is in the lowered position in the photos. The two that are in the up position are the abandoned Lakeshore and Michigan Southern railroad bridges.

When traveling on one of the many Amtrak trains that cross this bridge, a plaque is visible on the end post of the Pittsburgh, Fort Wayne & Chicago Railway Bridge. John Muntean sent a clear photo of the plaque, which can be found in the photo gallery. The plaque identifies the bridge as a Waddell and Harrington Lift Bridge and lists the Pennsylvania Steel Company as the builder. There may be more plaques on the other bridges. If anyone knows of more plaques on these bridges, Contact us!

In mid-February 2012 an unusual repair project took place for a portion of the bridge that remains in use by trains, the Pittsburgh, Fort Wayne & Chicago Railroad Bridge. A problem was found with the shaft that holds one of the large wheel-shaped cable drums in place at the top of the towers. The cable drum is four feet in width and weighs 60,000 pounds. The repair project was designed to repair the shaft. A portion of the project was limited to 112 hours by the Coast Guard. The Coast Guard typically has very strict restrictions on how long navigation can be obstructed on waterways under its jurisdiction, like the Calumet River. An estimated one week crane rental was needed to complete the project, needed to remove the cable drum and ship it to a shop to be repaired.

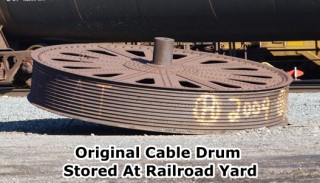

Also, one of the cable drums was completely replaced, and the original drum was found laying in a railroad yard just over the state line in Indiana.

Historic American Engineering Record feels that these bridges are the most notable and central railroading symbol for Chicago, the railroad capital of North America.

Next to this bridge is the remains of a Strauss bascule bridge. This bridge has a separate webpage located here.

Thanks to Tom Winkle for providing boat transportation to assist in the photo-documentation of this historic bridge.

Additional Technical Facts (Lakeshore and Michigan Southern Bridges)

Construction Date

Main Span Length Tower Height Bridge Width Skew Amount Designer
1912-1915 209.75 Feet Aprox. 190 Feet above water level. 31 Feet Each 50 Degrees Waddell and Harrington of Kansas City, Missouri

Additional Technical Facts (Pittsburgh, Fort Wayne & Chicago Railway Bridge)

Construction Date

Main Span Length Tower Height Bridge Width Skew Amount Designer Fabricator Superstructure Contractor Substructure Contractor
1912-1913 210 Feet Aprox. 190 Feet above water level. 31.25 Feet 50 Degrees Waddell and Harrington of Kansas City, Missouri Pennsylvania Steel Company, of Steelton, PA Kelly-Atkinson Company of Chicago, IL Dravo Contracting Company of Pittsburgh, PA

Pittsburgh, Fort Wayne, and Chicago Railroad Bridge Plaque

WADDELL & HARRINGTON LIFT BRIDGE

PATENTED IN U.S.A., AUG 24, 1909.

MAR. 22, 1910, MAR 29, 1910, MAY 31, 1911.
OTHER PATENTS PENDING
PATENTED IN CANADA FEBRUARY 1, 1910, MAR 8, 1910

BUILT BY
PENNSYLVANIA STEEL CO.
STEELTON, PA.
1912



Information and Findings From Chicago Landmarks Designation

General Information

Address: East of Chicago Skyway, North of 98th St. (Calumet River)
Year Built: 1912 - 1915
Architect: Waddell & Harrington
Date Designated a Chicago Landmark: December 12, 2007

The two Lake Shore & Michigan Southern Railway bridges over the Calumet River are among four surviving examples of the "span-driven" vertical-lift bridges in Chicago. Built from patents by Kansas City-based engineering firm of Waddell and Harrington, these bridges are a prominent visual landmark in the surrounding area. The pair consists of two adjacent, double-track, steel-truss spans that together make up the largest multiple installation of Waddell and Harrington's patented design. The towers that support the spans share a foundation with a remnant of the Pittsburgh, Fort Wayne & Chicago Bridges. Operating on the same principles as an elevator, the spans are raised and lowered by a system of cables and pulleys. The spans which were designed to operate independently or as a single unit were driven by motors located in a control room. Today, the operating machinery has been removed and the spans are locked in a partially raised position. The massive structures are easily seen from the Chicago Skyway.

These Bridges Are Designated Chicago Landmarks

Visit The Chicago Landmarks Website
