Ashland Avenue Sanitary and Ship Canal Bridge

Ashland Avenue Sanitary and Ship Canal Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: August 12, 2006 and June 28, 2011

View Photos
and Videos
View Maps
and Links

Key Facts

Facility Carried / Feature Intersected
Ashland Avenue Over Chicago Sanitary and Ship Canal
Location
Chicago: Cook County, Illinois: United States
Structure Type
Metal Rivet-Connected Pratt Pony Truss, Movable: Double Leaf Bascule (Fixed Trunnion) and Approach Spans: Metal Stringer (Multi-Beam), Fixed
Construction Date and Builder / Engineer
1938 By Builder/Contractor: Ketler-Elliott Company of Chicago, Illinois and Engineer/Design: City of Chicago

Technical Facts

Rehabilitation Date
Not Available or Not Applicable
Main Span Length
225 Feet (68.58 Meters)
Structure Length
312 Feet (95.1 Meters)
Roadway Width
57 Feet (17.37 Meters)
Spans
1 Main Span(s) and 4 Approach Span(s)
NBI Number
16600326842

Historic Significance Rating (HSR)

Bridge Documentation

View Archived National Bridge Inventory Report - Has Additional Details and Evaluation

View A Historical Article About The Previous Bridge At This Location

Ashland Avenue Bridge Raised

Photo Credit: Patrick Hynes

Ashland Avenue Bridge Newly Completed

This is rare example... indeed one of only three... examples of very wide pony truss bascule bridges in Chicago that feature three pony truss lines to carry a wide roadway. This bridge was built in 1938, with the superstructure contractor being the Ketler-Elliot Company, the the substructure contractor being Fitzsimons and Connell Dredge and Dock. This bridge is also associated with depression-related funding, and this is shown by the Federal Emergency Administration of Public Works label on the plaque. The design composed of three truss lines combined with original, handsomely decorated bridgetender buildings, as well as the Depression funded nature of the bridge make this structure stand out as one of the most historically and technologically significant highway bridges on the Sanitary and Ship Canal.

This bridge still operates for boats, thanks to the Chicago Yacht Yard, which is located along the canal on the west side of Ashland Street. Moving southwest down the canal, the bridge is also the final bridge that still operates for boats. It is interesting to note that if the yacht yard were located on the other side of the road, this bridge would likely no longer lift.

Carnegie Steel marks are found on some of this bridge's steel indicating the source of at least some of the steel used in this bridge.

The first documented bridge at this location was a 160 foot long, 20.5 foot wide iron hand-turned swing bridge built in 1883 by the Detroit Bridge Company. This was followed by the immediate predecessor to the current bridge, which was built in 1902 by the Chicago Bridge and Iron Company. This was a rare Page type bascule bridge. When it was replaced with the current bridge, a temporary bridge was erected next to it to keep the road open to traffic during construction. The temporary bridge was a bobtail swing bridge that was previously used on the Halsted Street Bridge over South Branch Chicago River.

The 1936 Annual Report of the Department of Public Works specified the role the various contractors listed on the bridge plaque played in constructing this bridge. The Overland Construction Company erected the temporary bridge. The Fitz Simmons and Connell Dredge and Dock Company built the substructure. The Ketler-Elliott erected the superstructure. Electrical equipment was installed by the Garden City Engineering Company. The approach was built by the Mid-West Construction Company.

Ashland Avenue Bridge

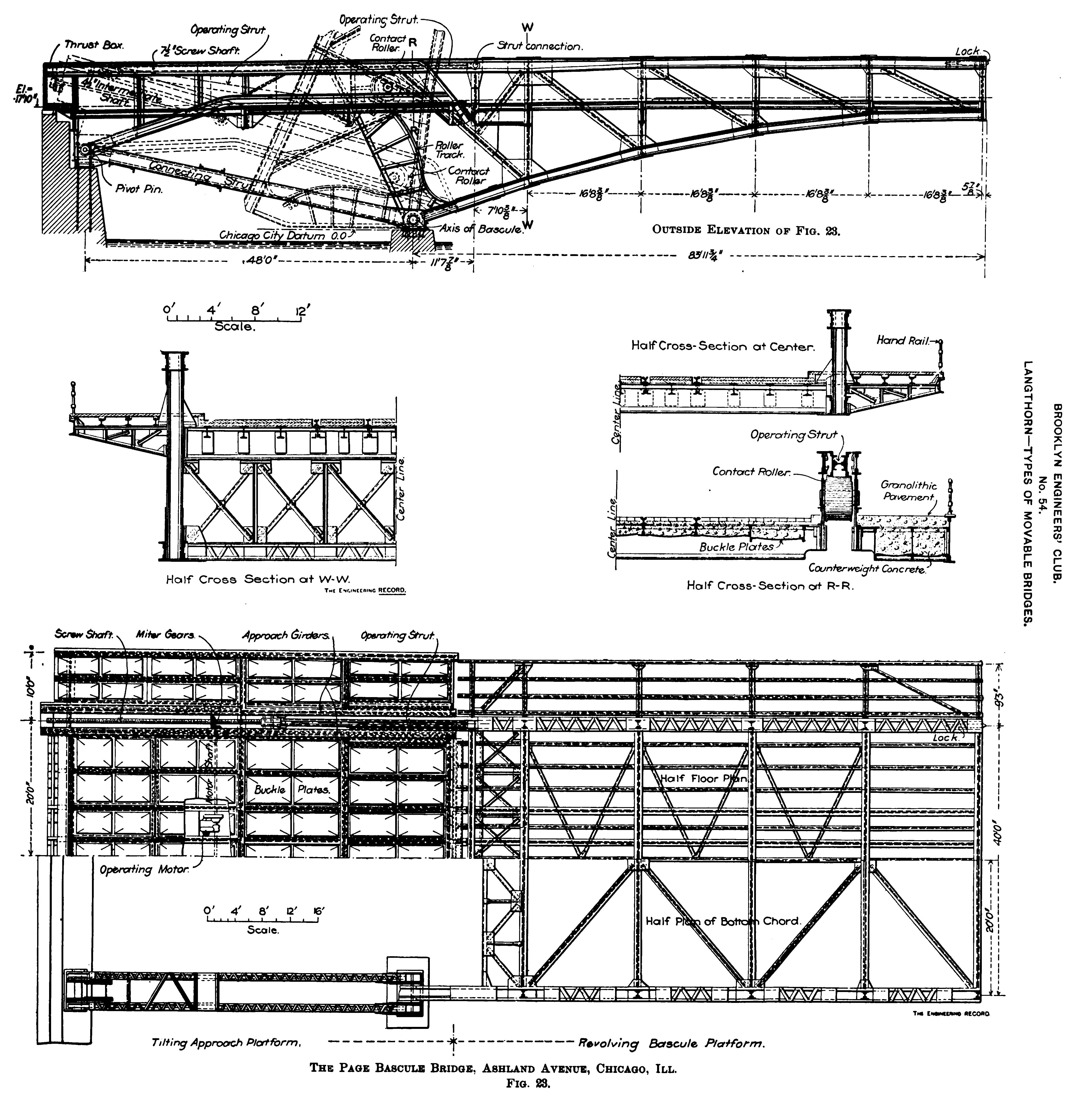

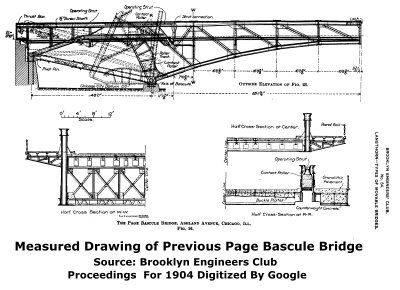

Previous Ashland Avenue Bridge DrawingPrevious Ashland Avenue BridgePrevious Ashland Avenue Bridge
