Indiana Harbor Belt Grand Calumet Bridge

Indiana Harbor Belt Grand Calumet Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: October 1, 2010

View Photos
and Videos
View Maps
and Links

Key Facts

Facility Carried / Feature Intersected
Railroad (Indiana Harbor Belt Railroad) Over Grand Calumet River
Location
Burnham: Cook County, Illinois: United States
Construction Date and Builder / Engineer
By Builder/Contractor: Unknown

Technical Facts

Rehabilitation Date
Not Available or Not Applicable
Main Span Length
Not Available
Structure Length
Not Available
Roadway Width
Not Available
Spans
1 Main Span(s)
NBI Number
Not Applicable

Historic Significance Rating (HSR)

Bridge Documentation

This bridge no longer exists!

Bridge Status: Demolished and replaced.

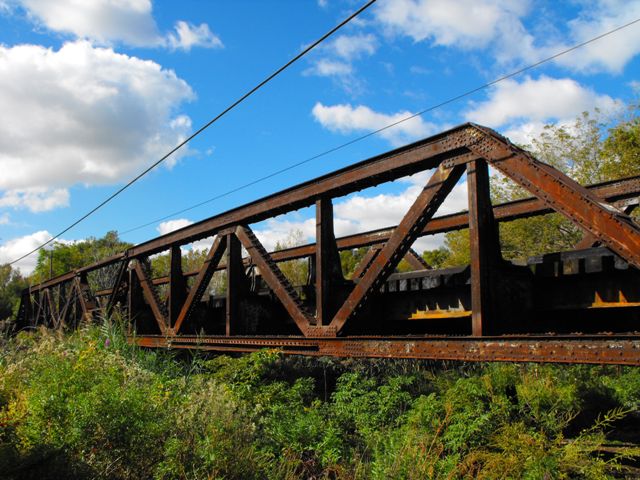

This bridge is one of the most unusual and rare historic railroad bridges in the Cook County, IL and Lake County, IN area, which is rich in historic bridges. Pony truss railroad bridges are very uncommon nationwide, with through trusses and through plate girders being more common. Combine this with the fact that this is a swing bridge, and the result is a bridge that is extremely rare. At the time this bridge was documented by HistoricBridges.org, 26 truss swing bridges were present on the website, and all were through trusses. As a pony truss swing, the bridge has unusual design. Unlike the typical through truss swing, the trusses do not form a "tower" at the center swing pier, and instead the top chord remains horizontal throughout the bridge. The two panels over the swing pier however have eyebars and pin connections for the top chord, giving the bridge its distinctive and unusual appearance. Otherwise, the trusses are traditionally composed.

This bridge should be considered historically and technologically significant as a rare variation on the design of a swing bridge, a bridge type that is itself uncommon.
