Kedzie Avenue CN Railroad Bridge

Chicago, Madison and Northern Railroad Bridge

Kedzie Avenue CN Railroad Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: August 12, 2006 and September 7, 2011

View Photos
and Videos
View Maps
and Links

Key Facts

Location
Chicago: Cook County, Illinois: United States
Construction Date and Builder / Engineer
1899 By Builder/Contractor: Toledo Bridge Company of Toledo, Ohio (Former Smith Bridge Company of Toledo, Ohio)

Technical Facts

Rehabilitation Date
Not Available or Not Applicable
Main Span Length
474 Feet (145 Meters)
Structure Length
479 Feet (146 Meters)
Roadway Width
Not Available
Spans
1 Main Span(s)
NBI Number
Not Applicable

Historic Significance Rating (HSR)

Bridge Documentation

View Historic American Engineering Record (HAER) Documentation For This Bridge

HAER Data Pages, PDF

View A Historical Article About The Sanitary and Ship Canal

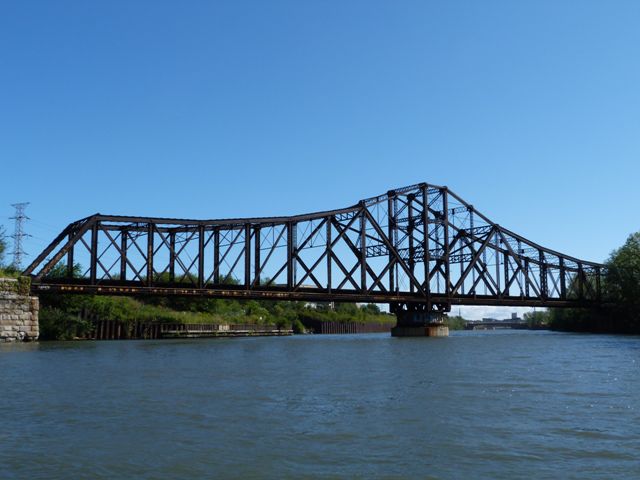

This is the swing bridge visible northeast of Kedzie Avenue, and is one of three impressive and rare swing bridges remaining on the Sanitary and Ship Canal, which are among the oldest and most historic in the history-rich Cook County bridge inventory.

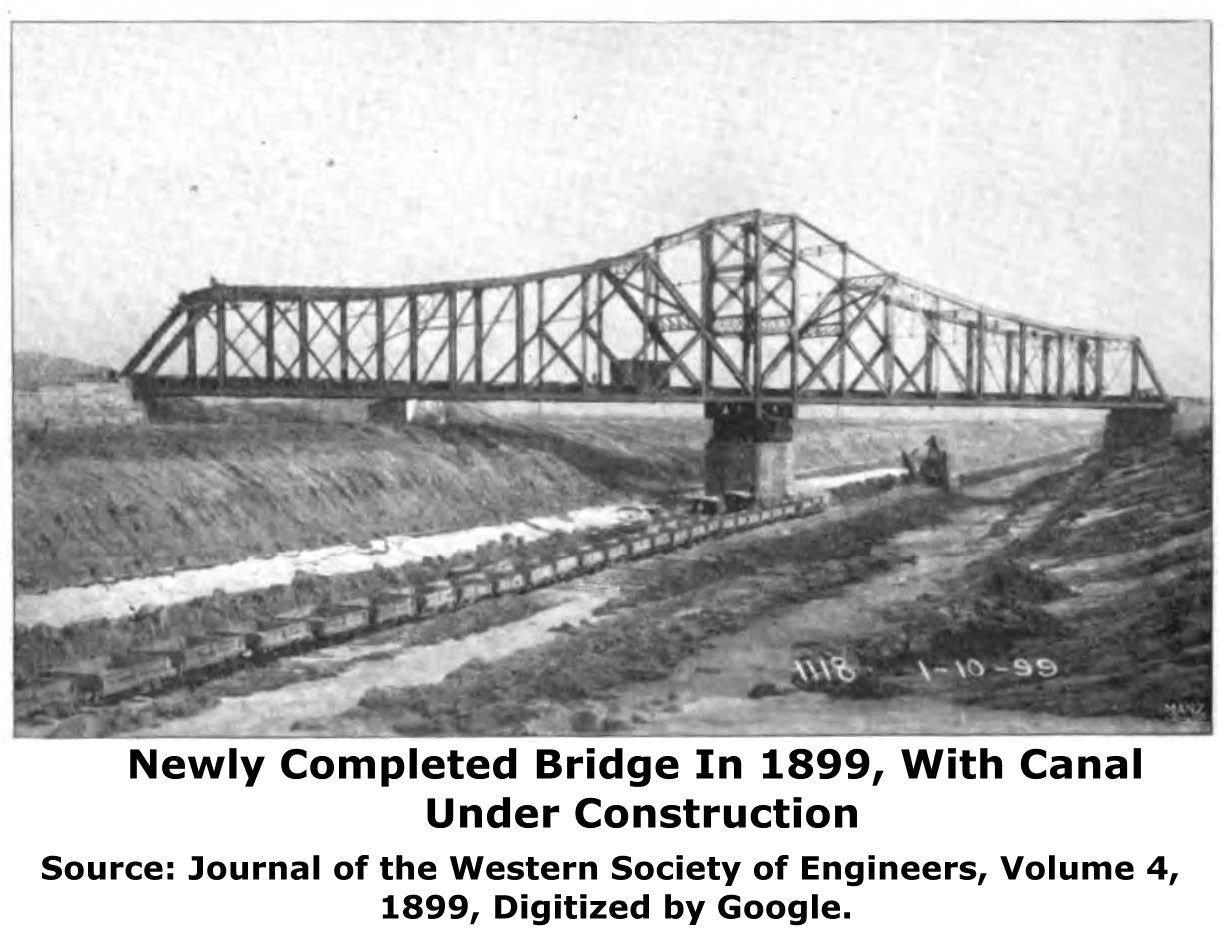

This swing bridge is the longest of the swing bridges on this canal, and has a slightly pointier peak at the center of the span compared to the other swing bridges, which makes it look taller. It was reportedly the longest swing span ever built when completed. The McArthur Brothers and Winston and Company were the substructure contractors, while the Toledo Bridge Company was the superstructure contractor. Total cost was $110,644.85. The weight of the iron and steel in the bridge when completed was 2,511,140 pounds.

Thanks to Tom Winkle for providing boat transportation to assist in the photo-documentation of this historic bridge.

Illinois Central Railroad Swing Bridge

Information and Findings From Chicago Landmarks Designation

General Information

Address: North of the Stevenson Expressway, East of Kedzie Ave. (Chicago Sanitary and Ship Canal)
Year Built: 1899 - 1900
Architect: Sanitary District of Chicago
Date Designated a Chicago Landmark: December 12, 2007

Spanning the Chicago Sanitary and Ship Canal north of the Stevenson Expressway; the Illinois Central Railroad Swing Bridge was originally built for the Chicago, Madison & Northern Railroad. The span is made from a single steel truss which measures 479'-5" in length and at the time of its completion was the longest swing span ever erected. The bridge rests on a center pier situated in the middle of the canal. When operational, the bridge would pivot on the center pier to create a navigable channel on either side. Today, the IC Railroad Bridge is one of the few center-bearing swing-span bridges that remain and possesses a distinctive visual presence that can be seen from the Stevenson Expressway and Kedzie Avenue.

This Bridge Is A Designated Chicago Landmark

Visit The Chicago Landmarks Website
