General Sullivan Bridge

Little Bay Bridge

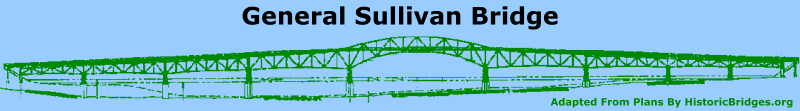

General Sullivan Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: June 16, 2012

View Photos
and Videos
View Maps
and Links

Key Facts

Facility Carried / Feature Intersected
Non-Motorized Path (Old US-4 Alignment) Over Little Bay
Location
Portsmouth and Dover: Rockingham County, New Hampshire and Strafford County, New Hampshire: United States
Structure Type
Metal Continuous (Arched) Rivet-Connected Polygonal Warren Through Truss, Fixed and Approach Spans: Metal Rivet-Connected Polygonal Warren Deck Truss, Fixed
Construction Date and Builder / Engineer
1934 By Builder/Contractor: Unknown and Engineer/Design: Fay, Spofford, and Thorndike of Boston, Massachusetts

Technical Facts

Rehabilitation Date
1950
Main Span Length
275 Feet (83.8 Meters)
Structure Length
1,585 Feet (483.1 Meters)
Roadway Width
24 Feet (7.32 Meters)
Spans
1 Main Span(s) and 8 Approach Span(s)
NBI Number
6502000002300

Historic Significance Rating (HSR)
View Information About HSR Ratings

Bridge Documentation

This bridge's future is at risk!

Bridge Status: This bridge is slated for demolition!

View Archived National Bridge Inventory Report - Has Additional Details and Evaluation

View a detailed historical narrative about this historic bridge.

This bridge is the only surviving example of a unique design of bridge designed by Fay, Spofford, and Thorndike. The larger and earlier example was the Lake Champlain Bridge, now demolished. The three central spans of the bridge are one of the earliest examples in the country of a design of bridge that was copied by a number of engineers in future bridge projects. The design features a deck truss that transitions into a through truss, using an arched shape. The specific design as seen here and later adapted by others does not include hangers, and can either be constructed to function, like the General Sullivan Bridge, in a hingeless format (continuous truss) or a hinged design (cantilever truss). These bridges are sometimes called "arched continuous trusses" or "arched cantilever trusses." However the theory and general design behind these varieties of bridges can be further adapted to allow the center portion of the truss to arch well above the roadway, and to connect to the roadway via hangers. This variation is called a "suspended-deck continuous truss" or "suspended-deck cantilever truss." Fay, Spofford, and Thorndike also built some of the earliest examples of suspended-deck truss bridges as well.

Given that this bridge is among the earliest surviving examples of its style, as well as an early surviving highway continuous truss, it is hard to understate the historic significance of this bridge. It is certainly among the most significant bridges in New Hampshire.

The General Sullivan Bridge has been bypassed by a modern bridge, however was left standing next to its replacement. There was serious concerns that despite this, the bridge was still at risk for demolition.  However, a visit to the bridge in 2012 found that a large approach structure had been built to reach the northern end of the bridge, which was disconnected as part of the continuing project to provide a wider vehicular bridge next to the historic bridge. This substantial approach structure accommodates non-motorized traffic. It seems unlikely that the bridge currently faces demolition, if such expense went toward producing this new approach system. There is some cause for continuing concern however, since one of the southern approach spans is signed and partially fenced to limit the number of pedestrians on it, suggesting there is some form of deterioration on this particular span. It is hoped that the bridge will receive whatever repairs are needed to ensure this exceedingly significant historic bridge remains for decades to come.

Divider

Photo Galleries and Videos: General Sullivan Bridge


View Photo Gallery
Structure Overview
Original / Full Size Photos
A collection of overview photos that show the bridge as a whole and general areas of the bridge. This gallery offers photos in the highest available resolution and file size in a touch-friendly popup viewer. Alternatively, Browse Without Using Viewer
View Photo Gallery
Structure Details
Original / Full Size Photos
A collection of detail photos that document the parts, construction, and condition of the bridge. This gallery offers photos in the highest available resolution and file size in a touch-friendly popup viewer. Alternatively, Browse Without Using Viewer
View Photo Gallery
Structure Overview
Mobile Optimized Photos
A collection of overview photos that show the bridge as a whole and general areas of the bridge. This gallery features data-friendly, fast-loading photos in a touch-friendly popup viewer. Alternatively, Browse Without Using Viewer
View Photo Gallery
Structure Details
Mobile Optimized Photos
A collection of detail photos that document the parts, construction, and condition of the bridge. This gallery features data-friendly, fast-loading photos in a touch-friendly popup viewer. Alternatively, Browse Without Using Viewer

Divider

Maps and Links: General Sullivan Bridge

Access this bridge from the north on Dover Point Road, where there is a small park from where you can both view and walk on the bridge and park your car.
