Carmel Achor Road Bridge

Negley Bridge

Carmel Achor Road Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: July 4, 2006

View Photos
and Videos
View Maps
and Links

Facility Carried / Feature Intersected
Carmel Achor Road (TR-1026) Over North Fork Little Beaver Creek
Location
Achor (Rural): Columbiana County, Ohio: United States
Construction Date and Builder / Engineer
1882 By Builder/Contractor: Columbia Bridge Works of Dayton, Ohio
Rehabilitation Date
2002
Main Span Length
155.8 Feet (47.5 Meters)
Structure Length
160.0 Feet (48.8 Meters)
Roadway Width
15.4 Feet (4.69 Meters)
Spans
1 Main Span(s)
Inventory Number
1530291

Historic Significance Rating (HSR)
View Information About HSR Ratings

Bridge Documentation

View Archived National Bridge Inventory Report - Has Additional Details and Evaluation

This ancient 1882 bridge uses similar structural parts and design details as the 1881 Carillon Park Bridge which is also a Columbia Bridge Works bridge. These parts are very unusual, and unlike other bridges built during the same period by other bridge companies. Columbia Bridge Works was known for building bridges with unusual design details. From the top chord and end post, to the vertical members, to the unusual connection details, these Columbia Bridge Works were very unusual. This is a very significant bridge for its age, documented association with Columbia Bridge Works, Whipple truss configuration, and decent span length. The Columbia Bridge Works liked to make their bridges look nice, and that is apparent in this bridge through their trademark builder plaque design, and also through the decorative portal bracing. Decorative finials are also present on this bridge, adding to the ornate aesthetic value of the structure.

This bridge is an eleven panel pin connected Whipple truss. The deck has been redone and features a metal grate surface.  Original lattice railings remain above modern Armco railings. This bridge has thankfully been rehabilitated in a very high quality and tasteful manner and as a result the bridge is today in good condition, continuing to be a safe and functional crossing. The bridge is both an example to and a striking comparison to nearby Pennsylvania, which claims that rehabilitation of this type is not possible and instead demolishes and replaces bridges like this.

Information and Findings From Ohio's Historic Bridge Inventory

Setting/Context

The bridge carries a 2 lane road over a stream in a sparsely developed, rural setting.

Physical Description

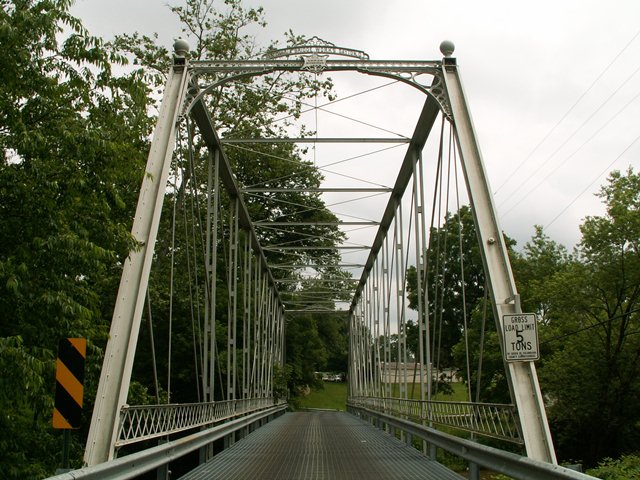

The 1 span, 160'-long, pin-connected Whipple truss bridge has built-up compression members and eyebar or rod tension members. It is finished with lattice railings and has portal bracing with decorative brackets and ball finials.

Integrity

Rehabilitated/galvanized floor system added, 2001. This is a superb bridge that is extremely well preserved by the county.

Summary of Significance

Although the flooring system has been modified, the truss lines maintain their integrity of design and materials. The 1882 Whipple truss fabricated by the Columbia Bridge Works is an increasingly rare and significant example of its type/design. The eligible recommendation of the prior inventory remains appropriate.

Double-intersection Pratt trusses, also known as Whipple or Murphy-Whipple trusses, were among the most successful of long-span thru truss designs (up to 300' long) of the 1860s to 1890s for both railroad and vehicular crossings. Surviving examples are uncommon nationally and considered technologically significant; Ohio with at least 14 identified examples dating from 1881 to 1898 (Phase 1A survey, 2008) has a very high number in comparison to most other states. The truss design is characterized by diagonals that extend over two panels. In 1847, Squire Whipple, one of America's foremost bridge engineers, developed the design figuring that the double-intersection configuration increased the depth of panel without altering the optimal angle of the diagonals, thus allowing for increased span length. His design was further refined in 1859 by John W. Murphy, the talented chief engineer of Pennsylvania's Lehigh Valley RR, who substituted wrought-iron pins for cast-iron connecting pieces, thus developing the connection detail that would prove to be advanced construction practice for this and other truss designs for the next several decades. Ohio's surviving examples, which mostly date to the 1880s, were not cutting edge for their time, but they show how the form had evolved into the preferred long-span thru truss design of the period. Most have documented associations with prominent Ohio-based fabricators.

Justification

The bridge ranks as one of the finest examples of a Columbia Bridge Works thru truss with idiosyncratic details particular to the company. It is also an exemplary rehabilitation.

Bridge Considered Historic By Survey: Yes
