Catherine Street Bridge

Thornhill Place Bridge

Catherine Street Bridge

Primary Photographer(s): Nathan Holth

Bridge Documented: April 10, 2010 and January 10, 2012

View Photos
and Videos
View Maps
and Links

Key Facts

Detroit: Wayne County, Michigan: United States
Construction Date and Builder / Engineer
By Builder/Contractor: Unknown

Technical Facts

Rehabilitation Date
Not Available or Not Applicable
Main Span Length
Not Available
Structure Length
Not Available
Roadway Width
Not Available
1 Main Span(s)
NBI Number
Not Applicable

Historic Significance Rating (HSR)
View Information About HSR Ratings

Bridge Documentation

Thank you to Albert Dudley for providing the correct name for this bridge. Catherine Street is a Detroit street that no longer exists today.

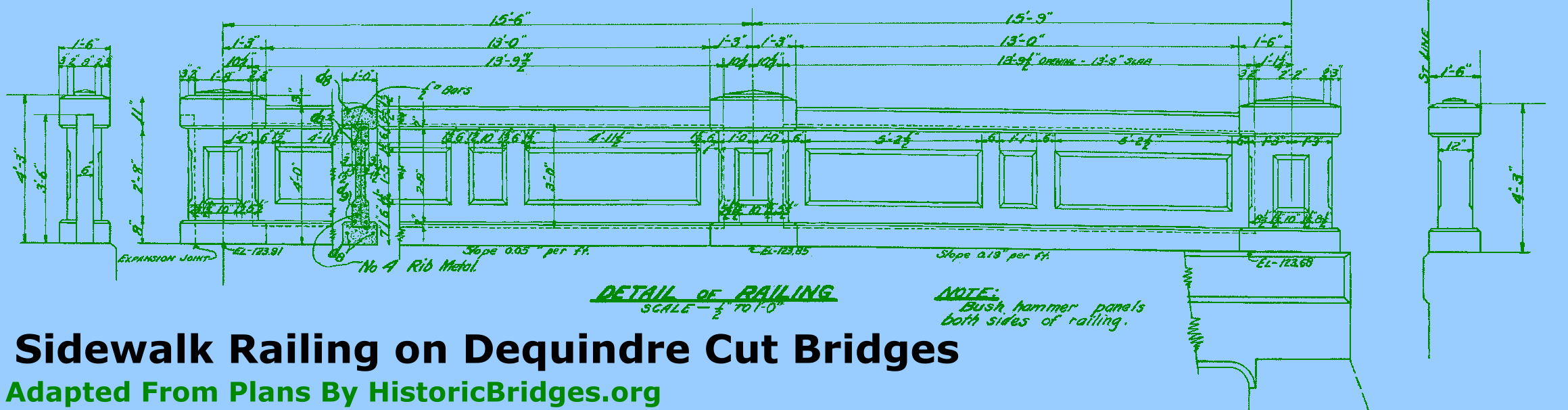

Sidewalk Railing on Dequindre Cut Bridges

About The Dequindre Cut Bridges

This bridge is one of several remaining historic bridges that cross an old abandoned Grand Trunk Western line called the Dequindre Cut, which was built as a depressed rail line so that not only could grade separation bridges could be built to maintain the flow of vehicular traffic, these grade separations could be built without an approach, reducing land acquisition. This was the same concept executed with many of the interstate highways in Detroit, which are depressed freeways. The Dequindre Cut was created to deal with the rapid growth that Detroit experienced in the early 20th Century. The rail line runs from roughly Mack Avenue to Jefferson Avenue along St. Aubin Street.

The Antietam Avenue Bridge and the Chestnut Street Bridge were highlighted as specific bridges which were individually eligible for the National Register of Historic Places. Visit those pages for historical narratives from the Historic Bridge Inventory. Although only these two bridges were highlighted as individually eligible, it was noted that the entire Dequindre Cut formed a potential  historic district, and if such a historic district were created, all these surviving bridges would become eligible for the National Register as contributing structures to the historic district. Further, the demolition of the Antietam Avenue Bridge means that perhaps one of the other surviving examples found not individually eligible should be re-evaluated for eligibility in light of the increased rarity of surviving examples of these bridges.

There were once many more bridges along the Dequindre Cut than were present when HistoricBridges.org documented the bridges in 2007 and 2010. In 1930, there were a total of 16 bridges. A number of these bridges have been demolished with no replacement built. Today, the abutments of many of these demolished bridges remain as evidence of heritage lost. In addition, some of the original bridges have been replaced with new bridges. Worse, those bridges which remain are in very poor condition with extensive spalling, cracking, and efflorescence observed and as such these bridges are likely at risk for demolition. The only redeeming consideration for these bridges is that this area of Detroit experiences far less traffic, particularly truck traffic, than it would have decades ago. The extensive industry that was once around this railroad line is largely demolished or abandoned, with only a few properties appearing to be active.

The design of the bridges are all very similar, with most bridges having two or three spans. The bridges include concrete railings with inset rectangles cast into the railing panels and the railing posts. The bridges have arched concrete piers. The superstructure of the bridge has the appearance of a concrete slab, although an unusual detail observed on some of the bridges was under the sidewalks, where the bridge had an appearance of a t-beam with individual beams rather than a solid slab. Despite these appearances, the bridges are listed as steel stringers in the National Bridge Inventory. This could imply that the bridges are concrete encased steel stringer bridges, which  are rare for highway bridges in Michigan, or it could imply that the bridges are listed incorrectly in the National Bridge Inventory.

There are some differences from the above description in a few bridges. The Wilkins Street Bridge has only one sidewalk and the railings for the side without a sidewalk have a different design. The Thornhill Place Bridge has a single span instead of two or three and unlike the other bridges its sidewalks are cantilevered. The Antietam Avenue Bridge has steel bents instead of the usual concrete piers.

Recently, the Dequindre Cut has been finding new life as the Dequindre Cut Greenway, which is currently a non-motorized trail that runs in the section south of Gratiot Avenue. Future plans include extending the trail north of Gratiot to Mack Avenue, and also adding a light rail transit system which would also run in it. Unfortunately, the preservation of the historic bridges does not appear to have been included as part of this project. The preservation of the historic bridges should be considered an essential part of the project since they contribute to the aesthetic and historical qualities of the Dequindre Cut Greenway.

About the Catherine Street Bridge

This bridge has only a single span and it also has cantilevered sidewalks. The previously abandoned bridge has been reopened for pedestrian use, although no work has been done on the structure.
